Client: Vietnam Waste Solutions, Inc.
Main Contractor: JPS Engineering & Construction Company Limited
Project Details:
Da Phuoc Integrated Waste Management Facility is located in Da Phuoc Commune, Binh Chanh District ~ south of Ho Chi Minh City, Vietnam.
Da Phuoc Phase 1 Sanitary Landfill with leachate collection, removal & treatment is designed by Vector Engineering Inc. basing on North American standards and receives up to 6,000 tons of domestic waste daily.
Green Cosmos jointly with our local partner JPS E&C constructed the entire 45ha landfill complete with soil improvement works (PVD), field installation of 1.5mm thick single-side textured HDPE liner and 30/30 kN biaxial geogrids, sub-drain & leachate collection system and uni-axial high strength geogrid reinforced embankment construction – all under strict CQA supervision by Vector Engineering, Inc.
Approximate Quantities
| Sub-drain sand : 400,000 cum PVD : 1,180,000 linm Sub-drain pipes : 3,800 linm Biaxial geogrid : 310,000 sqm |
Engineered Fill : 90,000 cum Biaxial geogrid : 310,000 sqm Strip drain : 67,000 linm |
HDPE Liner : 310,000 sqm LCRS Sand : 31,000 cum LCRS pipes : 17,000 linm |
Pictorials on Landfill Construction & Field Installation of Environmental Lining System:

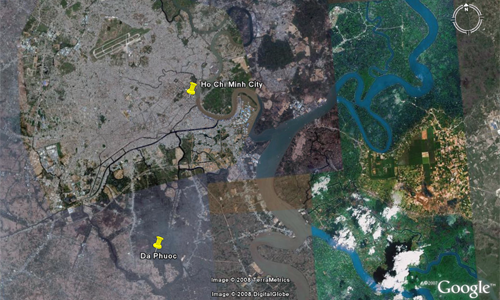

Location |

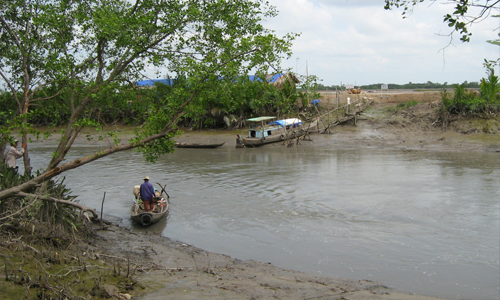

Access by water |

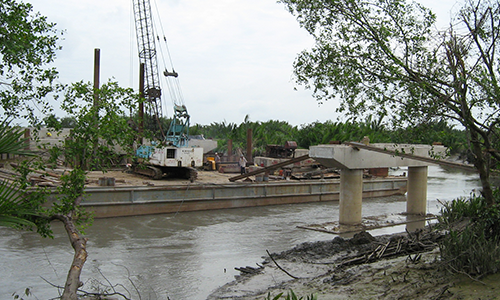

Bridge construction |
Completed bridge |
Clearing of mangroves |

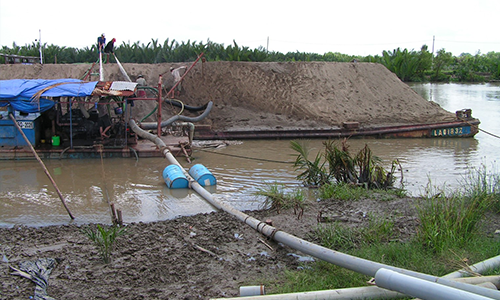

Pumping sand |

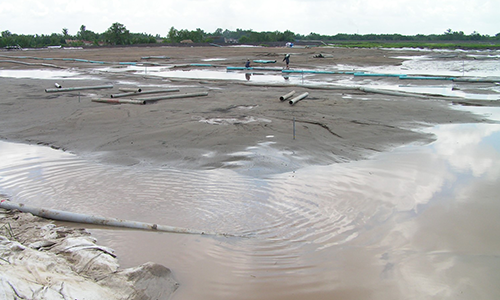

Sand pumped into place |

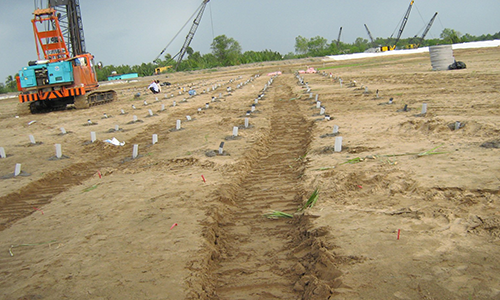

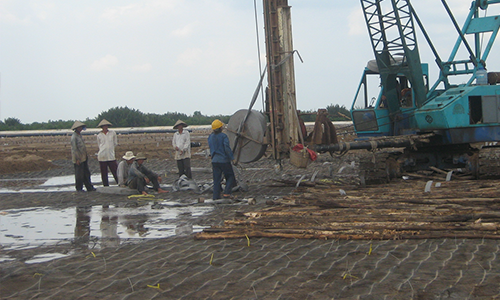

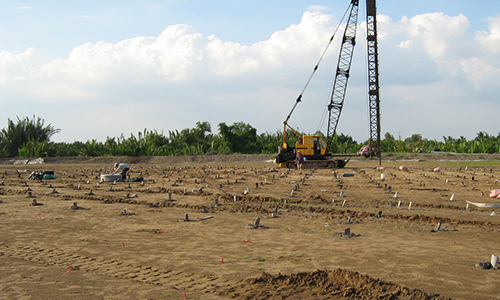

Prefabricated vertical drains |
Soft sand |
Machine bogged |

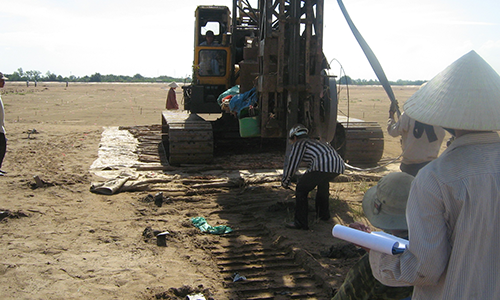

Timber platform |

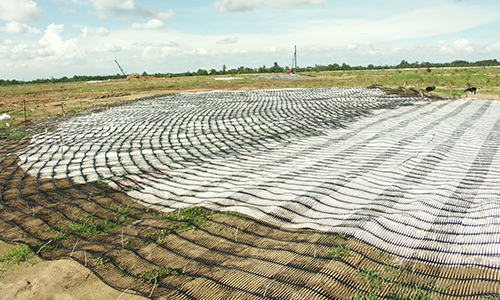

Geogrid for worst areas |

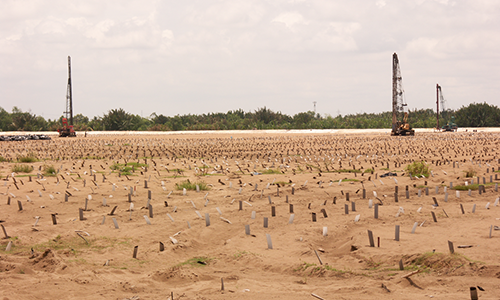

PVDs |

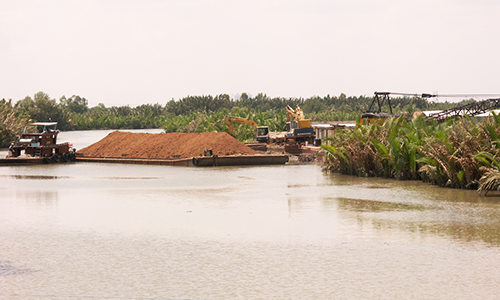

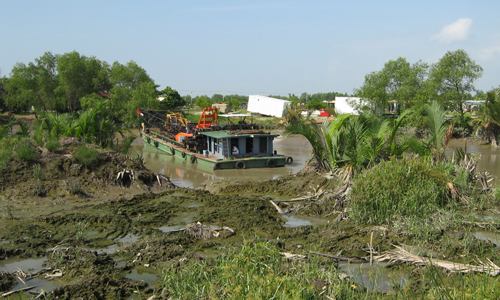

Materials by barge |

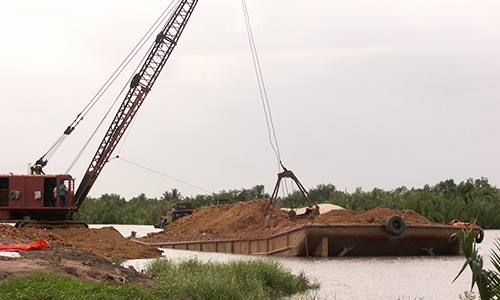

Clamshells to unload |

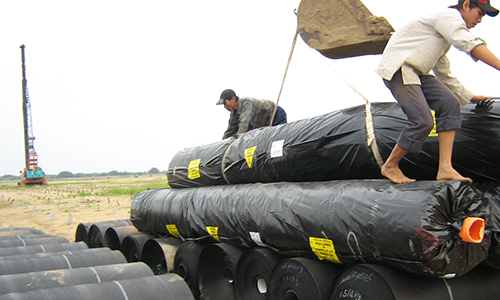

Stacking geosynthetics |

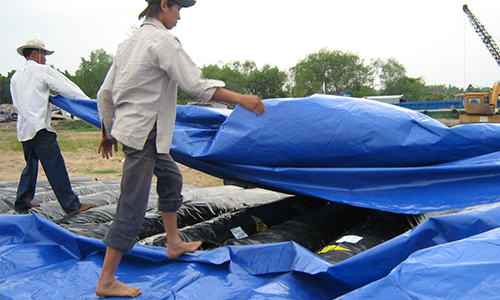

Covering geosynthetics |
Geogrid and geotextile for embankments |
Geogrid around corner |

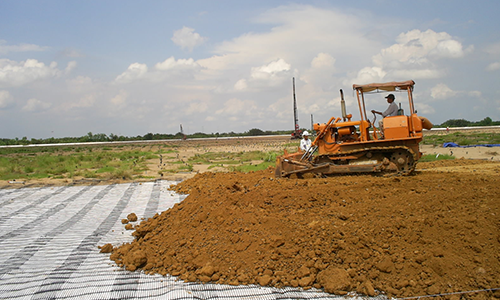

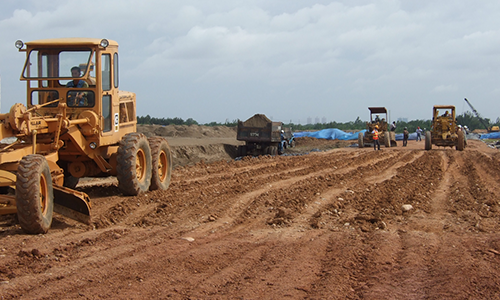

Spreading of Fill |

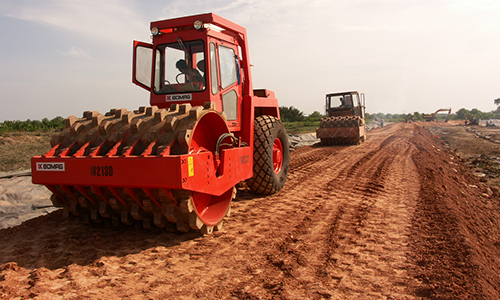

Compaction of fill |

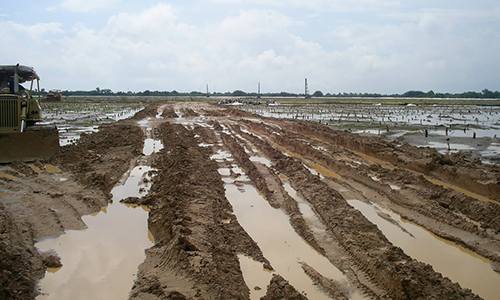

Wet Season |

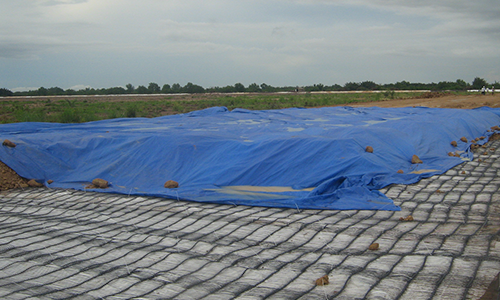

Cover for fill |

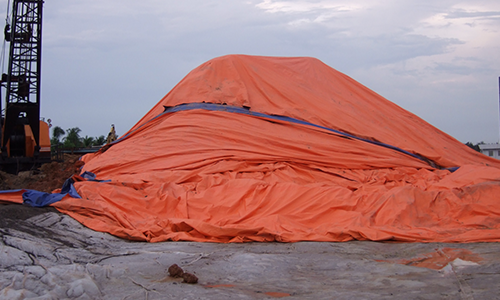

Cover for stockpiles |
Deploying earthfill cover |
Re-working of fill |
More re-working of fill |

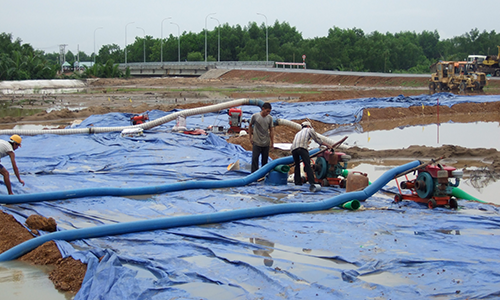

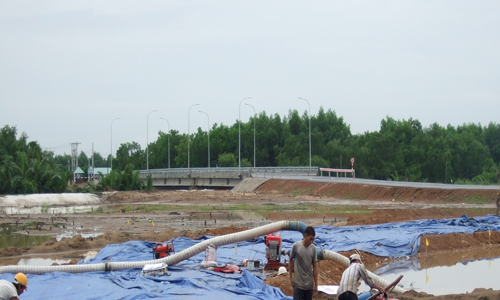

Pumps and more pumps |

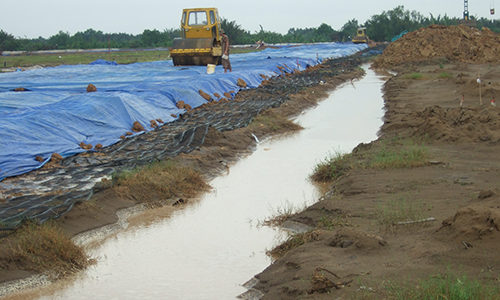

Drainage channels |

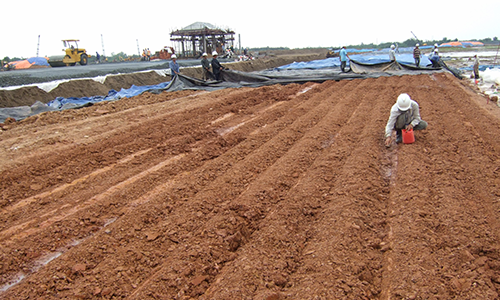

Density by sand replacement |

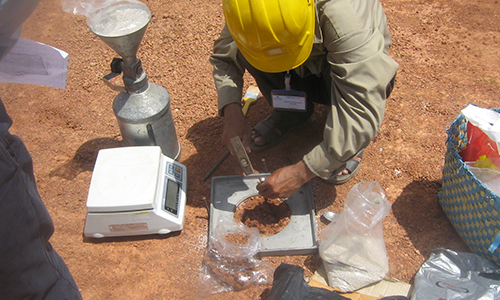

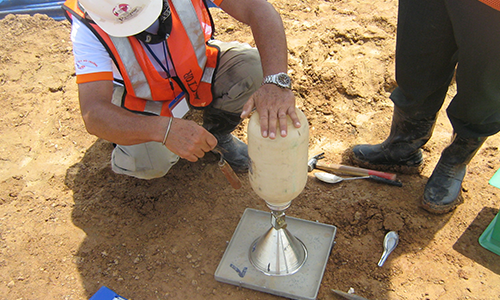

Sand cone |

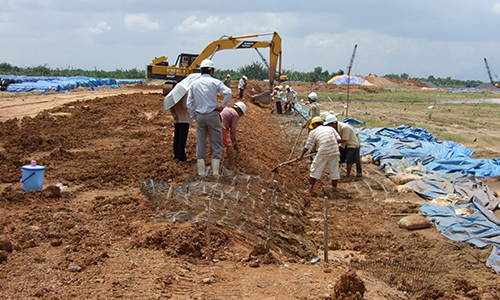

Geogrid wrapping at toe |

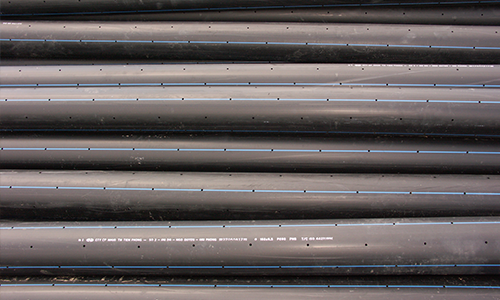

Perforated pipes |

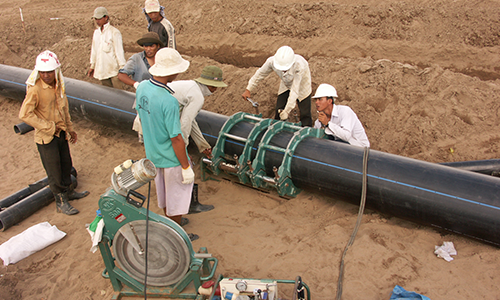

Butt welding pipes |

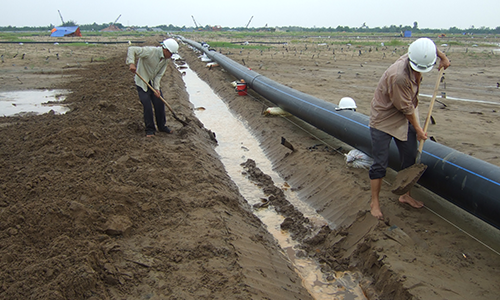

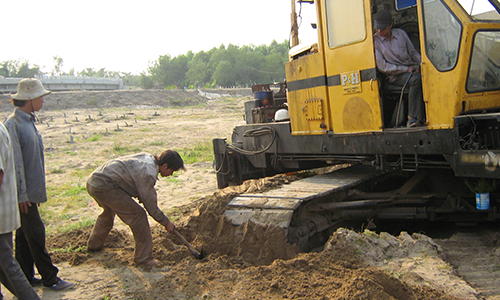

Trenching for sub-drain pipes |

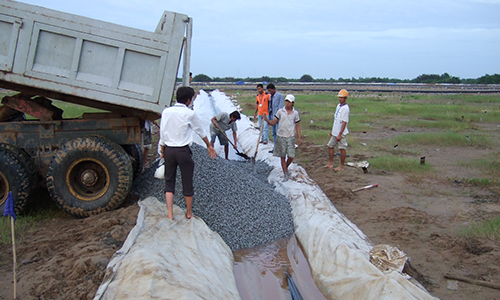

Sub-drain pipe installation |

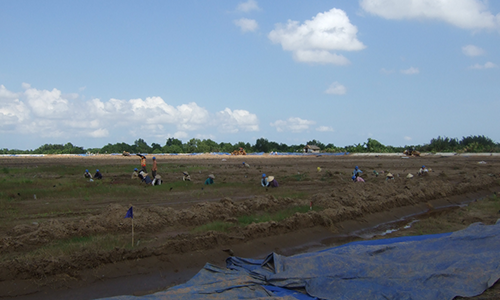

Clearing vegetation |

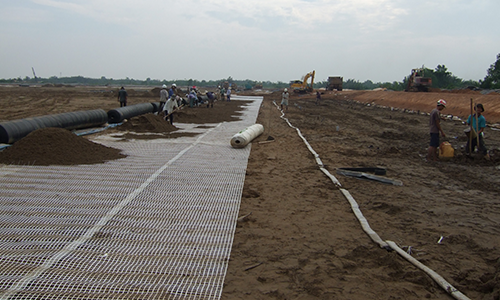

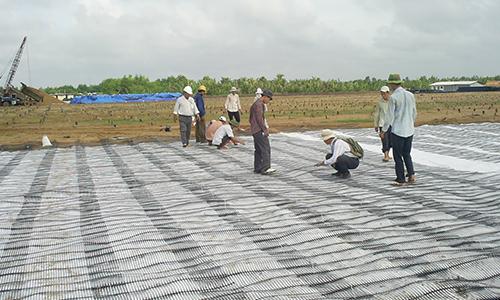

Biaxial geogrid and strip drains |

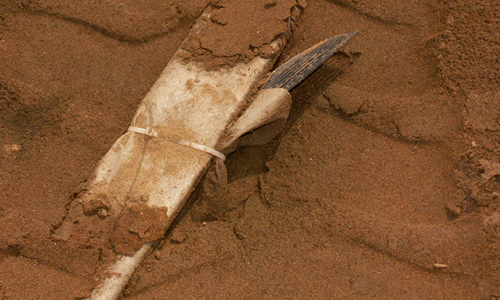

Stripdrain and PVD |
Sand cover |

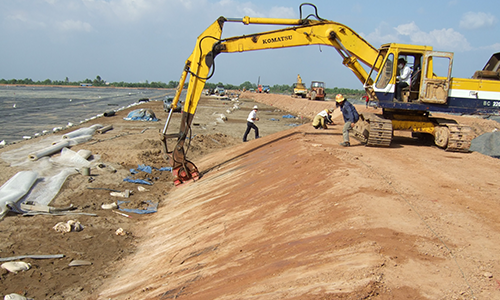

Compaction of face |

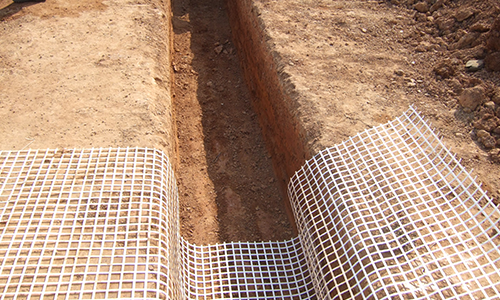

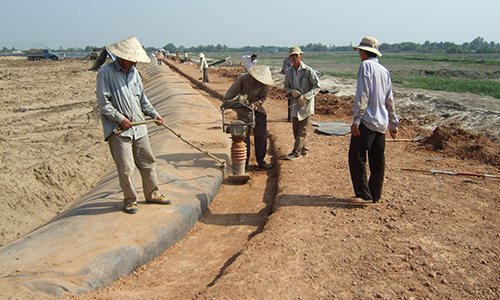

Anchor trench |
Backfill anchor trench |

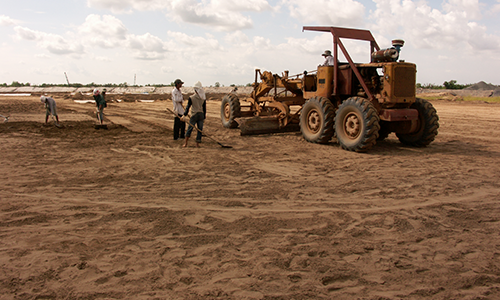

Subgrade preparation |

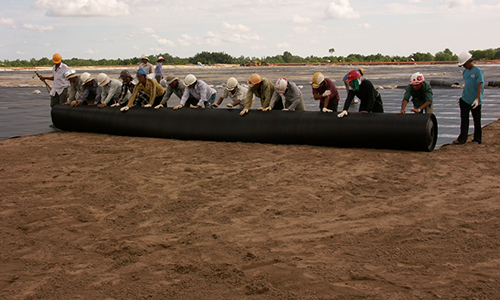

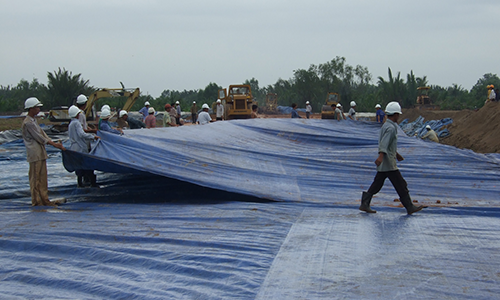

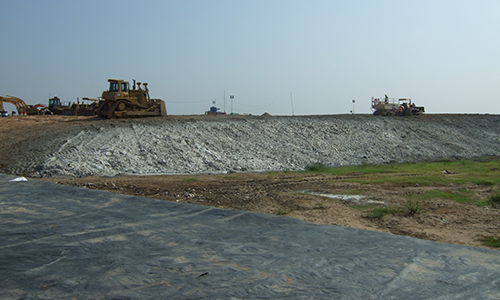

Deploy liner |

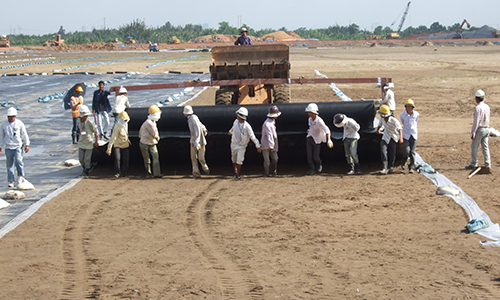

Deploy liner |
Cleaning for seams |

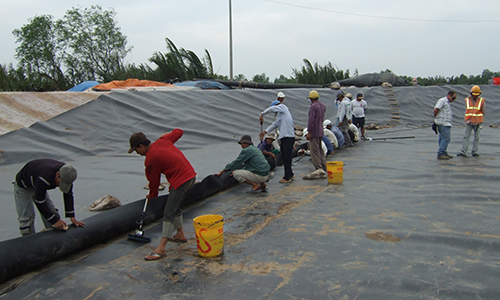

Seaming crew |

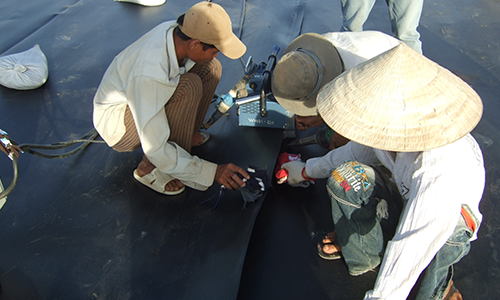

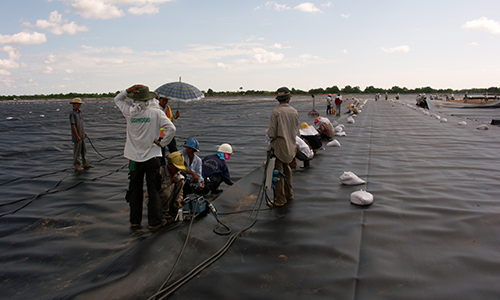

Seaming |

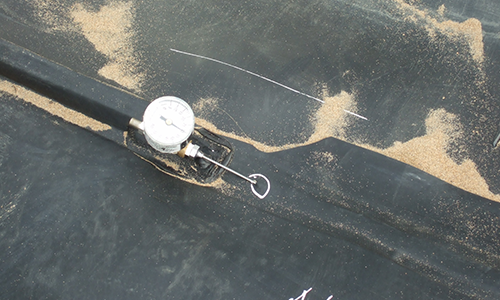

Air pressure testing |

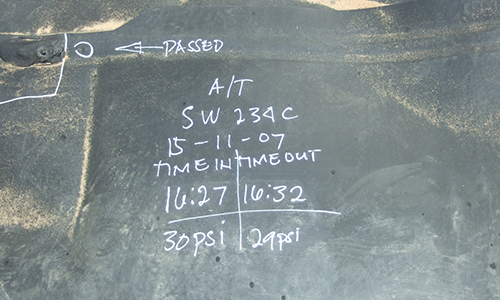

Testing passed |

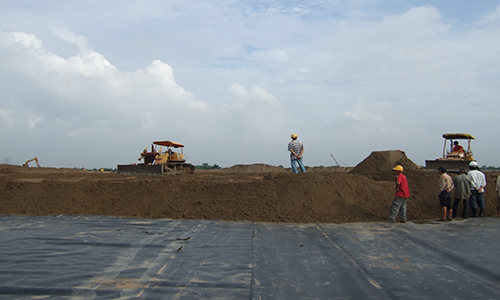

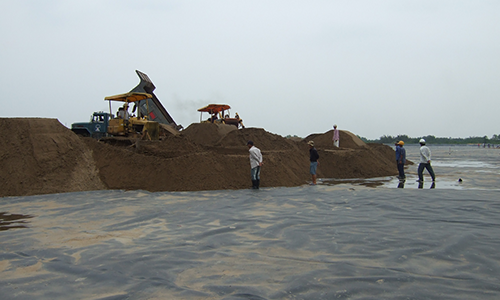

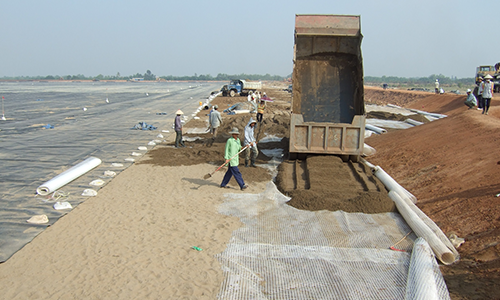

Leachate sand placement |
More leachate sand |

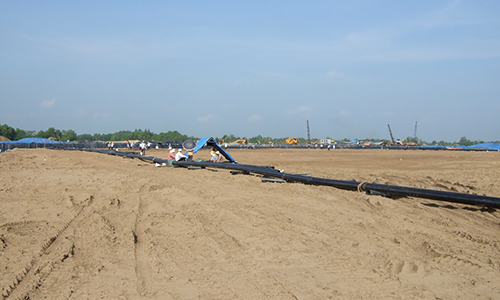

Leachate pipes |

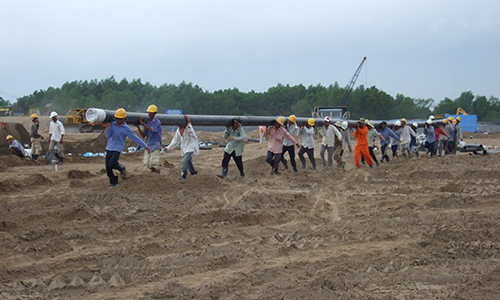

Adapt local methods |

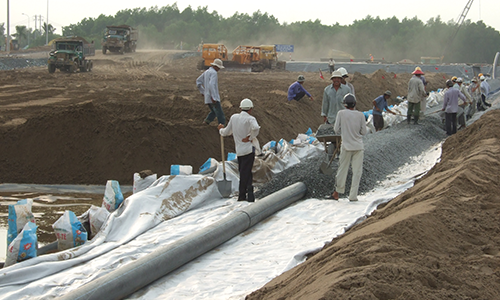

Leachate pipe installation |

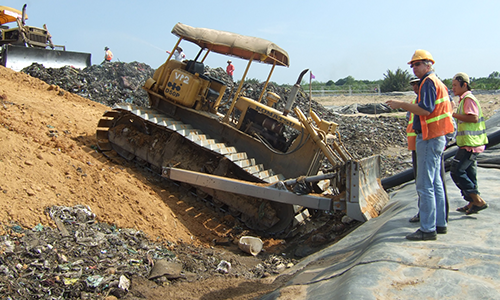

Placement of waste |
And it all went without a hitch! |
